Description:

7000C 630

Manufacturer: HES

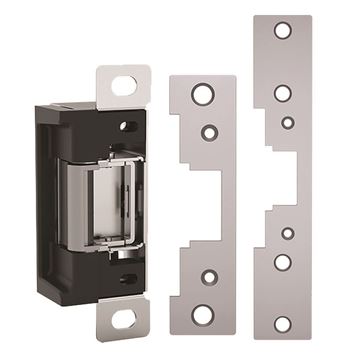

Product: HES Electric Strike Complete

HES Safe/Fail Secure 12/24VDC

7000 Series Electric Strike

The 7000 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation.

The dual, preload solution for cylindrical latch bolts and rim exit devices.

The 7000 Series offers two solutions to address preloaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The preload release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

Product Features

• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs. (791 and 792 options)
• Dynamic strength 70 ft-lbs. (791 and 792 options)
• Static strength 1,000 lbs. (783S, 786S and 789S options)
• Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
• Endurance 1,000,000 cycles
• Field selectable fail secure/fail safe
• Accommodates preload (fail secure only)
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Strike body depth 1-11/16"
• Plug-in connector
• Trim enhancer (791 and 792 options)
• Pocket adapter (786S and 789S options)
• Dual voltage 12 or 24 VDC/VAC
