• Users—100 Codes
• upgradable to 300 codes with optional software
• over 100 million possible code combinations 3000 Audit Events Locks are programmed via keypad or with optional Microsoft Excel based software
• Simplifies management of doors and users as facility's number of users and access points grow Non-handed
• pre-assembled for left hand door installations
• easily changed in the field

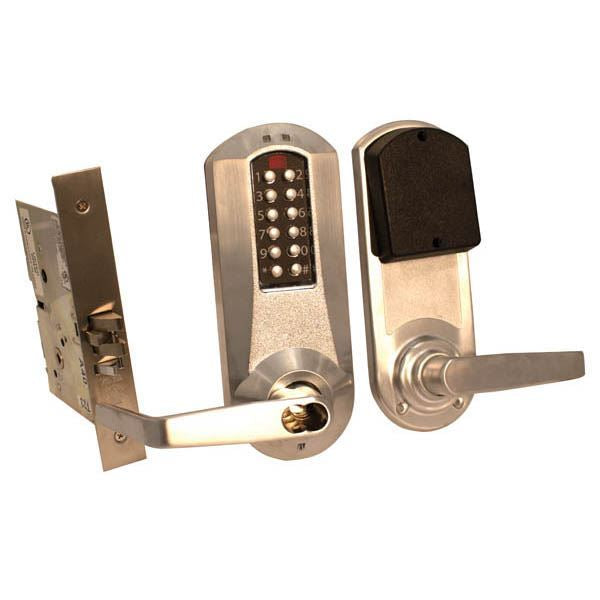

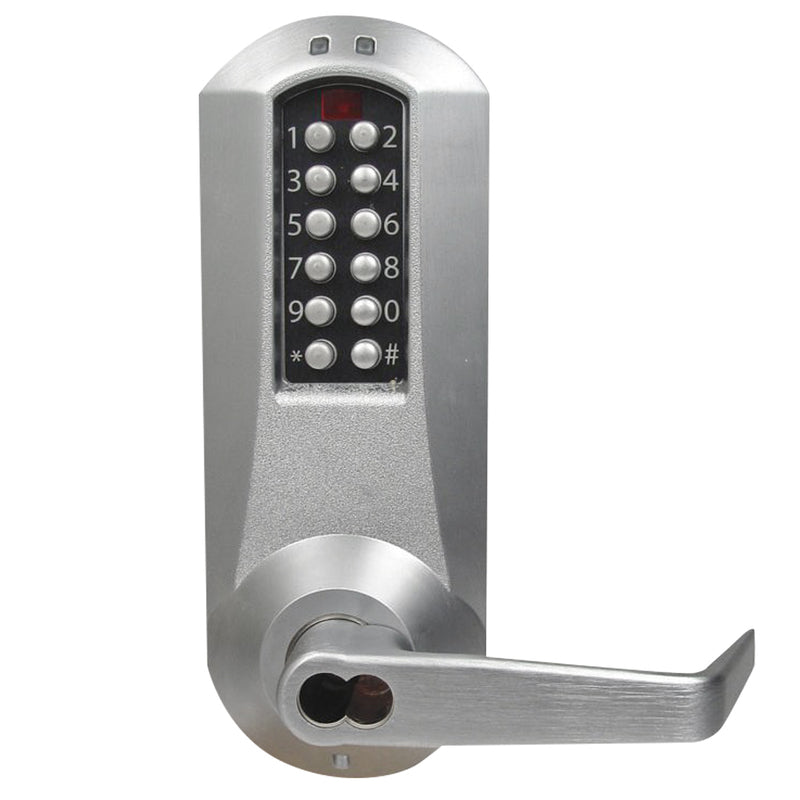

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination while allowing free egress.
LectroBoltTM eliminates wiring to or through the door. No risk of pinched wires.
Multiple Users - 100 Codes. Upgrades to 300 Codes with optional software
Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
Locks are programmed via keypad or with optional Microsoft Excel-based software. Simplifies management of doors and users as facility’s number of users and access points grow.
Operation Modes - PIN access, Lockout, or Passage.
Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)
Authority Levels (5): Master Level performs all set-up and programming functions; Manager Level administers common programming functions; Access User Level - Entry granted with valid PIN; Service Level - Codes for single event or single day access programmable in advance; and Maintenance Level - No access is granted but information can be uploaded/downloaded to/from the lock
User Parameters: Code length is adjustable to accept 4 to 8 digits, Anti-tamper lockout is adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds, and Re-lock time is adjustable from 2 to 20 seconds
Access schedules - Up to 16 different access schedules may be programmed into lock
Holiday/Vacation - Up to 32 different holiday / vacation blocks may be programmed into lock
